| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | GT SONIC |
| Certification: | CE, RoHS, FCC |
| Model Number: | GT SONIC-D2 |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Packing material: pearl wool and corrugated carton. |
| Delivery Time: | 3-25 days |
| Payment Terms: | L/C, T/T, Western Union, PayPal, Credit card |
| Supply Ability: | 500 units per day |
| Tank Size: | 150L×140W×100H (mm) | Tank Capacity: | 2 Liter |
|---|---|---|---|
| Unit Size: | 190L*170W*220H (mm) | Ultrasonic Power: | 50 W |
| Ultrasonic Frequency: | 40 KHz | Heating Power: | 100 W |
| Heating Temperature: | 0-80 ℃ | Tank Material: | Stainless Steel SUS304 |
| Warranty: | 1 Year | Application: | Eyeglass Cleaner, Watch Cleaner, Jelwery Cleaner |
| High Light: | Normal Soft Parts Ultrasonic Cleaner,Power Adjustable Parts Ultrasonic Cleaner,2L Automatic Ultrasonic Cleaner |
||

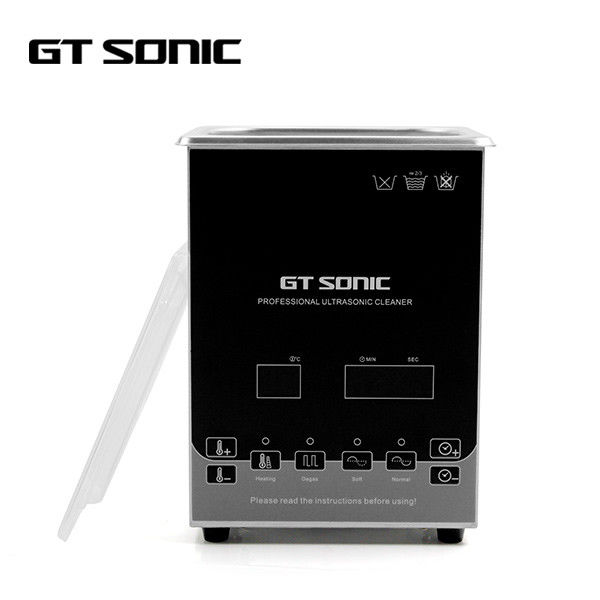

General Description:
GT SONIC-D series Ultrasonic cleaners are the improved version of the QTD series with dual power and degas functions.40kHz frequency makes it suitable for general cleaning applications.D series comprises 7 machine sizes from 2 liters to 27 liters.
Specifications:
|
Model |
Tank size |
Unit size |
Volume |
Ultrasonic power |
Ultrasonic frequency |
Heating power |
Timer |
Heating temperature |
|
L×W×H(mm) |
L×W×H(mm) |
(L) |
Normal (W) |
(kHz) |
(W) |
(MIN) |
(℃) |
|
|
GT SONIC-D2 |
150*140*100 |
190*170*220 |
2 |
50 |
40
|
100 |
1-99 |
0-80 |
|
GT SONIC-D3 |
240*140*100 |
270*170*240 |
3 |
100 |
100 |
1-99 |
0-80 |
|
|
GT SONIC-D6 |
300*155*150 |
330*180*310 |
6 |
150 |
300 |
1-99 |
0-80 |
|
|
GT SONIC-D9 |
300*240*150 |
330*270*310 |
9 |
200 |
300 |
1-99 |
0-80 |
|
|
GT SONIC-D13 |
330*300*150 |
360*330*310 |
13 |
300 |
400 |
1-99 |
0-80 |
|
|
GT SONIC-D20 |
500*300*150 |
550*330*310 |
20 |
400 |
500 |
1-99 |
0-80 |
|
|
GT SONIC-D27 |
500×300×200 |
550×330×360 |
27 |
500 |
500 |
1-99 |
0-80 |
GT SONIC D-series features:
1. Normal and soft power control to resolve the cleaning blind spot.
2. DEGAS function for improving the cleaning effect.
3. User-friendly and clear panel.
4. Memory function.
5. LED display for temperature and timer.
6. High-performance transducer.
7. Patent products.
Application:
|
Industry |
Items to be cleaned |
|
Molds |
Plastic tool models --For cleaning. |
|
Electronics |
Relay—remove metal filings and impurities, Potentiometer-- impurities and oil stain on moving contact, Vacuum tube parts-- Dirt and impurity on the polar plate of the electron gun, Semiconductor element--Dir on the surface of the silicon wafer and crystal wafer, Capacitor--Dirt on pins of the capacitor, Printed circuit board--Ink and oxide left during processing of printed circuit board, Magnetic head--Dirt on the surface of the magnetic head. |
|
Mechanical |
Bearing, gear--Metal filings and impurities left during the processing of internal and external sheath of bearing, Spring--cleaning before spring turns black, Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts, Oil choke, oil pump--Metal filings and dirt left during the process of the inner hole of oil choke and oil pump, Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and abrasive left while processing. |
|
Automotive, motorcycle, aircraft |
To remove oil, grease, preservative, the plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite, and tar from the Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycle air-valve, etc. |
|
Armurerie |
weapons cleaning, such as guns, rifles, bullets, handcuffs, etc. --For cleaning and lubrication. |
|
Printing industry |
Rotative machine, metal plate, Printer ink head, printer cartridges -- To clean ink, oil, and dye on the surface of the printing machine & parts. |
|
Repair industry |
Musical instrument repair shops, vehicle maintenance shops, motorcycle repair shops, mobile phones & interphone repair shops, gun repair shops, etc. --To clean dirt, impurity, and oils from the surface of tools and spare parts. |
|
Watch & clock |
Gear wheel, pin, screw, movement of watches for watch manufacture, |
2L Ultrasonic Wash Tank Product details:
