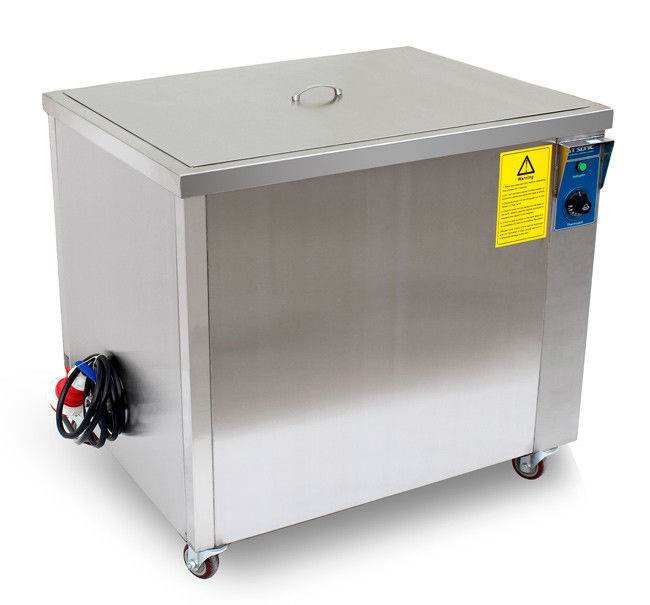

SUS304 PCB Manual Ultrasonic Cleaner 36-288L GT SONIC Portable

Basic Information
Place of Origin: China
Brand Name: GT SONIC
Certification: FCC,CE,RoHS
Model Number: VGT-1036S
Minimum Order Quantity: 1 pc
Price: Negotiable
Packaging Details: standard packing : wooden case
Delivery Time: 3-25 days
Payment Terms: L/C, T/T
Supply Ability: 100 units per day
Tank Size: 700*500*450mm Tank Material: Stainless Steel SUS304
Ultrasonic Power: 2160w Frequency: 28kHz/40kHz
Tank Capacity: 157L Heating Power: 5000W
Warranty: 1 Year QTY Of Transducers: 36pcs
High Light:

288L Manual Ultrasonic Cleaner

,

SUS304 PCB Manual Ultrasonic Cleaner

,

GT SONIC Portable Ultrasonic Washing Machine

OEM Ultrasonic Cleaning systems Manual Ultrasonic Cleaner 36-288L SUS304 Stainless Steel



Ultrasonic vibration cleaning machine Features:

1. Whole machine made of SUS304 stainless steel, 2mm thickness tank for acid-proof, anti-corrosive.
2. Industrial grade Ultrasonic transducer, moisture-proofed PCB.
3. Advanced generator, sweep frequency, high quality, better effect.
4. Ultrasonic power can be adjusted from 0-100%.
5. Temperature can be set from 30-110°C.
6. Industrial grade for 24 hours continuous working.
7. Ultrasonic frequency: 28kHz or 40kHz.
8. Fully portable, 36L and above volume machines are with wheels, locking wheels for stability.
9. With free lid and stainless steel SUS304 basket.
10. Customized according to customer’s request.



Specification


Model

Unit size
Volume
Ultrasonic Power
Ultrasonic Frequency
Heating power
Heating temperature
(L×W×H)mm
(L)
(W)
(kHz)
(W)
(℃)

VGT-2200QT

400×360×450
13
360
40
500
0-80
VGT-2300
570×360×450
36
720
28/40
800
30-110
VGT-1012S
530×430×600
40
720
28/40
2000
30-110
VGT-1018S
630×480×650
65
1080
28/40
3000
30-110
VGT-1024S
730×530×700
96
1440
28/40
4000
30-110
VGT-1030S
790×590×700
117
1800
28/40
4000
30-110
VGT-1036S
840×640×750
157
2160
28/40
5000
30-110
VGT-1042S
890×690×800
206
2520
28/40
6000
30-110



Details:
With the solid, sturdy structure and stainless steel SUS304 basket make our Ultrasonic descaler perform perfectly in the business
Whole machine made of SUS304 stainless steel, 2mm thickness tank for acid-proof, anti-corrosive.
Fully portable, 36L and above volume machines are with wheels, locking wheels for stability.



Application:
Electronics:
An Ultrasonic vibration cleaning machine gets a safe, unwavering cleaning for even the most delicate of components. GTSONIC baths completely remove flux and contaminants from such precision parts as PC boards, SMDs, quartz crystals, capacitors, and many others.
Auto parts:
Ultrasonic technology is changing today’s parts cleaning industry by making precision cleaning safer, faster, less expensive and more effective. Ultrasonic cleaners offer results far beyond traditional cleaning methods, for everything from carburetors to medical instruments.
Industrial:
The solid, sturdy structure and high tech design make our Ultrasonic vibration cleaning machine the perfect in the business. We manufacture standard systems from one to 206 liters, designed to handle Ultrasonic cleaning parts in a variety of shapes and sizes.



Before-After-Cleaning



SUS304 PCB Manual Ultrasonic Cleaner 36-288L GT SONIC Portable 0SUS304 PCB Manual Ultrasonic Cleaner 36-288L GT SONIC Portable 1



FAQ:



1.Which cleaning solution should I use?

A number of detergents, wetting agents and other such components are used in the making of a modern ultrasonic cleaning solution. And there is a variety of formulations available from which you can take your pick depending on the application. Selecting a proper solution is very important for a satisfactory cleaning job and to stop unwanted reactivity with the part being cleaned.



2.Which cleaning solution shouldn’t I use?

Flammables or solutions that have very low flash points should never be used. Cavitation releases energy which is then turned into heat and kinetic energy. As a result of that, high temperature gradients in the solutions are produced. This can be very hazardous for the part being cleaned. Acids, bleach and bleach by-products should generally be avoided. but may be used with indirect cleaning in a proper indirect cleaning container, such as a glass beaker, and appropriate care.Strong acid or alkaline cleaning solution will damage stainless steel tanks,to overcome this problem,pls use mild PH solution.



3.When should the ultrasonic solutions be changed?

Solution should be changed when the solution is very dirty or depleted or when you notice a decrease in cleaning action.However, you must remember that every cleaning session does not require a new batch of solution.



4.What is direct and indirect cleaning?

Direct cleaning occours when the parts are cleaned in the cleaning solution which fills the cleaner.Usual the parts inside the mesh cleaning basket.

The indirect ultrasonic cleaning is used when the parts to be cleaned are placed in a remove tank or beakers that contains cleaning chemical that could damage the ultrasonic cleaner.



5.How to Maintain Your Ultrasonic Cleaners?

1. In order to function, the ultrasound cleaner needs an adequate solution and by now, you should know to Strong acid or alkaline cleaning solution will cause corrosion, rust and even puncture of tank or machine body. To overcome this problem, dilute to mild PH solution or request for a tank made of a specific grade of stainless steel like SUS304.

2. Always unplug the unit before draining the solution. Leaving the heating elements energized by accident can cause them to overheat and fail. Also, water and electricity don’t mix, and the combination can be lethal when the human body is involved with excess splashing.

3. DO NOT operate the unit without fluid in the tank. When filling the tank, always ensure that the “MAX” marking is not exceeded.

4. Do not run the device for an extended time or continuously.

5. Do not hit the device. Be careful when moving the device.

6. Use a piece of cloth to cleaning and dry the tank after use it.
