| Place of Origin: | Guangdong, China |
|---|---|
| Brand Name: | GT SONIC |
| Certification: | CE, RoHS, FCC |
| Model Number: | GT SONIC-T2 |
| Minimum Order Quantity: | 1pc |
| Price: | Negotiable |
| Packaging Details: | Packing material: pearl wool and corrugated carton. |
| Delivery Time: | 3-25 days |
| Payment Terms: | L/C, T/T, Western Union, PayPal, Credit card |
| Supply Ability: | 500 units per day |
| Tank Material: | Stainless Steel 304 | Capacity: | 2L （0.8 Gallon） |
|---|---|---|---|
| Ultrasonic Frequency: | 40 KHz | Ultrasonic Power: | 50 Watts |
| Tank Size: | 150L×140W×100H (mm) | Unit Size: | 190L*170W*220H (mm) |
| Heating Power: | 100w | Heating Temperature: | 20-80 ℃ |
| High Light: | electronic jewelry cleaner,electric jewelry cleaner machines |
||
|

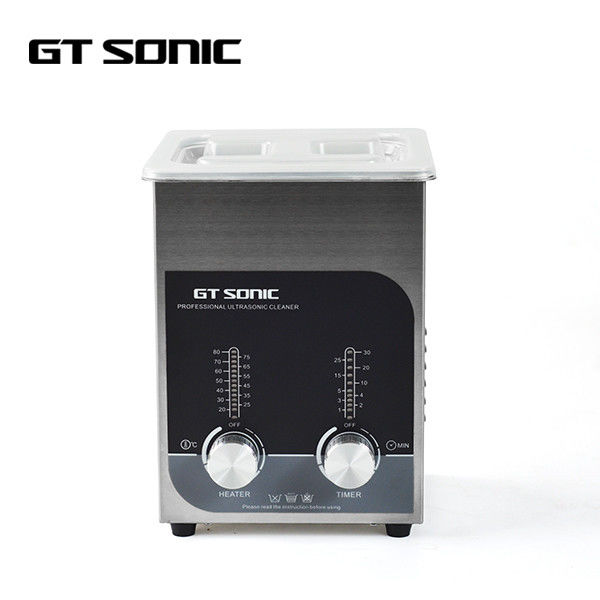

Model
|
GT SONIC-T2
|
|
Voltage
|
AC100~120V, 60Hz; AC220~240V, 50Hz
|
|
Frequency
|
40kHz
|
|
Power
|
50W
|
|
Capacity
|
2L
|
|
Tank size(mm)
|
150×140×100 (L×W×H)
|
|
Unit size(mm)
|
190×170×220 (L×W×H)
|
|
Lid
|
Have
|
|
Heating
|
Have
|
|
Drainage
|
None
|
|
Cleaning basket
|
Have
|
| Model | Tank Size | Unit Size | Volume | Ultrasonic Power | Ultrasonic Frequency | Heating Power | Timer | Heating Temperature |
| L x W x H (mm) | L x W x H (mm) | (L) | (W) | (kHz) | (W) | (MIN) | (℃) | |
| GT SONIC-T2 | 150x140x100 | 190x170x220 | 2 | 50 | 40kHz | 100 | 0-30 | 20-80 |
| GT SONIC-T3 | 240x140x100 | 270x170x240 | 3 | 100 | 100 | 0-30 | 20-80 | |
| GT SONIC-T6 | 300x155x150 | 330x180x310 | 6 | 150 | 300 | 0-30 | 20-80 | |
| GT SONIC-T9 | 300x240x150 | 330x270x310 | 9 | 200 | 300 | 0-30 | 20-80 | |
| GT SONIC-T13 | 330x300x150 | 360x330x310 | 13 | 300 | 400 | 0-30 | 20-80 | |
| GT SONIC-T20 | 500x300x150 | 550x330x310 | 20 | 400 | 500 | 0-30 | 20-80 | |
| GT SONIC-T27 | 500x300x200 | 550×330×360 | 27 | 500 | 500 | 0-30 | 20-80 |
|
Industry
|
Items to clean to be cleaned
|
|
Molds
|
Plastic tool models
--For cleaning.
|
|
Electronics
|
Relay—remove metal filings and impurities,
Potentiometer-- impurities and oil stain on moving contact,
Vacuum tube parts-- Dirt and impurity on the polar plate of the electron gun,
Semiconductor element--Dir on the surface of the silicon wafer and crystal wafer,
Capacitor--Dirt on pins of the capacitor,
Printed circuit board--Ink and oxide left during processing printed circuit board,
Magnetic head--Dirt on the surface of the magnetic head.
|
|
Mechanical
|
Bearing, gear--Metal filings and impurities left during the processing of internal and external sheath of bearing,
Spring--cleaning before spring turning black,
Vernier caliper, measuring tool--Metal filings and oil stain left during the processing of parts,
Oil choke, oil pump--Metal filings and dirt left during the process of the inner hole of oil choke and oil pump,
Screw rod, air valve, pneumatic elements--Iron filings, cutting oil and
abrasive left while processing.
|
|
Automotive
motorcycle
aircraft
|
To remove oil, grease, preservative, the plastic residue left during mechanical cutting, grinding abrasive, glass fiber, dust, graphite, and tar from Automotive air valve, glow plug, gasification plug, fuel pump, piston ring, battery terminal, machine control hand-wheel, motorcycle air-valve, etc.
|
|
Armurerie
|
weapons cleaning, such as guns, rifle, bullets, handcuffs, etc.
--For cleaning and lubrication.
|
|
Printing industry
|
Rotative machine, metal plate, Printer ink head, printer cartridges
-- To clean ink, oil, and dye on the surface of printing machine & parts.
|
|
Repair industry
|
Musical instrument repair shop, vehicle maintenance shops, motorcycle repair shop, mobile phones & interphone repair shop, gun repair shop, etc.
--To clean dirt, impurity, and oils from the surface of tools and spare parts.
|
|
Watch & clock
|
Gear wheel, pin, screw, movement of watches for watch manufacture.
|
